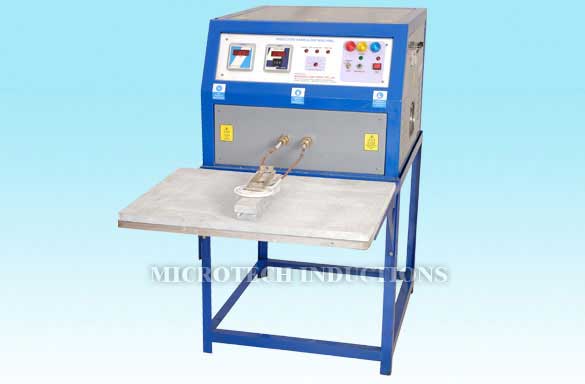

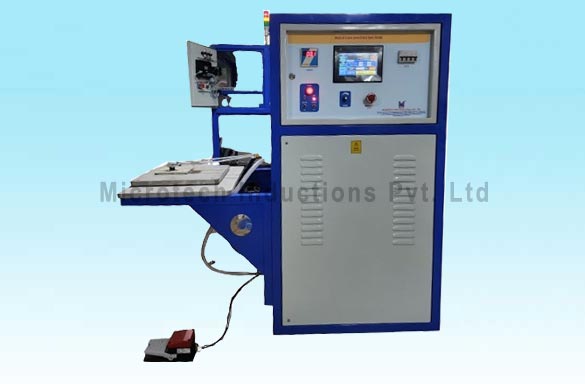

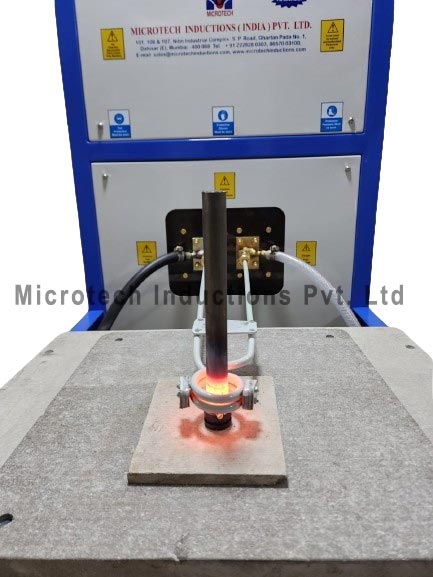

Induction Brazing Machine

Brazing is joining of similar or dissimilar metal (parent materials) by using heat and braze material (filler material) whose melting temperture is normally above 450 C and below the melting temperature of parent materials being joined.


Microtech induction brazing machines are made to replace conventional brazing methods, with more reliable / repeatable brazing without flame and smoke.


Brazing temperature can be controlled from 450 C to 1200 C for most of the brazing applications.

Applications


  • Copper parts for compressors.
  • Copper components of transformers.
  • Brass components.
  • Submersible pump rotors.
  • Ring cable lugs.
  • Aluminium component joints.
  • Soldering of brass components.
  • Steel components joints.
  • Brazing of storage water heater Elements.
  • Diamond tipped cutting tools.
  • Carbide tipping of cutting tools.
  • Optical Frame Brazing.
  • Fuel pipe Brazing.
  • Vacuum brazing of critical components.
  • Brazing stainless steel orthodontic parts.
  • Brazing of stainless steel to Brass.
  • Rocker Pins.
  • Hydraulic Hose.

Features


  • Auto or manual mode operation
  • Improved power factor
  • Strong and ductile joints
  • Suitable for dissimilar materials
  • Controlled atmosphere brazing is possible
  • Highly adaptable for automation
  • Compact size
  • Tropicalised design
  • Uniform heating at desired area provides even flow of filler metal
  • Lesser brazing cost comparing to conventional methods
  • Eco-friendly due to noiseless and flameless operation
  • No statutory approvals required
  • Lesser risk involved compared to conventional methods
  • Application Specific

Specifications

In our Endeavour to make better products, Microtech Induction Pvt. Ltd. reserves the right to change any specifications at any moment and without prior notice, to the models (including programming) and their accessories.

POWER RANGE 1-5KW 5-15KW. 15-50KW 50-200KW
FREQUENCY RANGE 5-600kHz 01-400kHz 01-30kHz 01-30kHz
ADAPTATION TO CHANGE LOAD CHARECTERISTICS YES YES YES YES
POWER CONTROL MANUAL AUTO AUTO AUTO
LOAD SENSED SELF TUNING YES YES YES
SIZE (mm) W-225
B-500
H-430
W-530
B-640
H-1110
W-620
B-725
H-1370
W-1000
B-1090
H-1675
INPUT POWER RANGE SINGLE PHASE
230V/50Hz.
THREE PHASE
230V/50Hz
THREE PHASE
440V/50Hz
THREE PHASE
440V/50Hz
